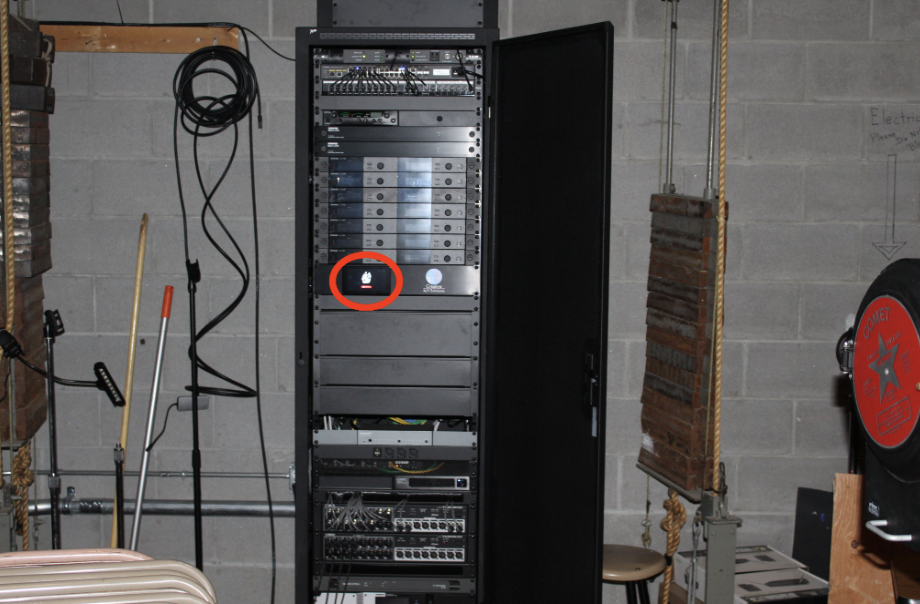

To turn on the system you need to tap the display in the middle of the black audio cabinet to wake it, then press power on. Do not touch the top or bottom sections of the audio cabinet, everything is handled from the one screen.
The entire system takes 2-3 minutes to power on fully (please be patient)

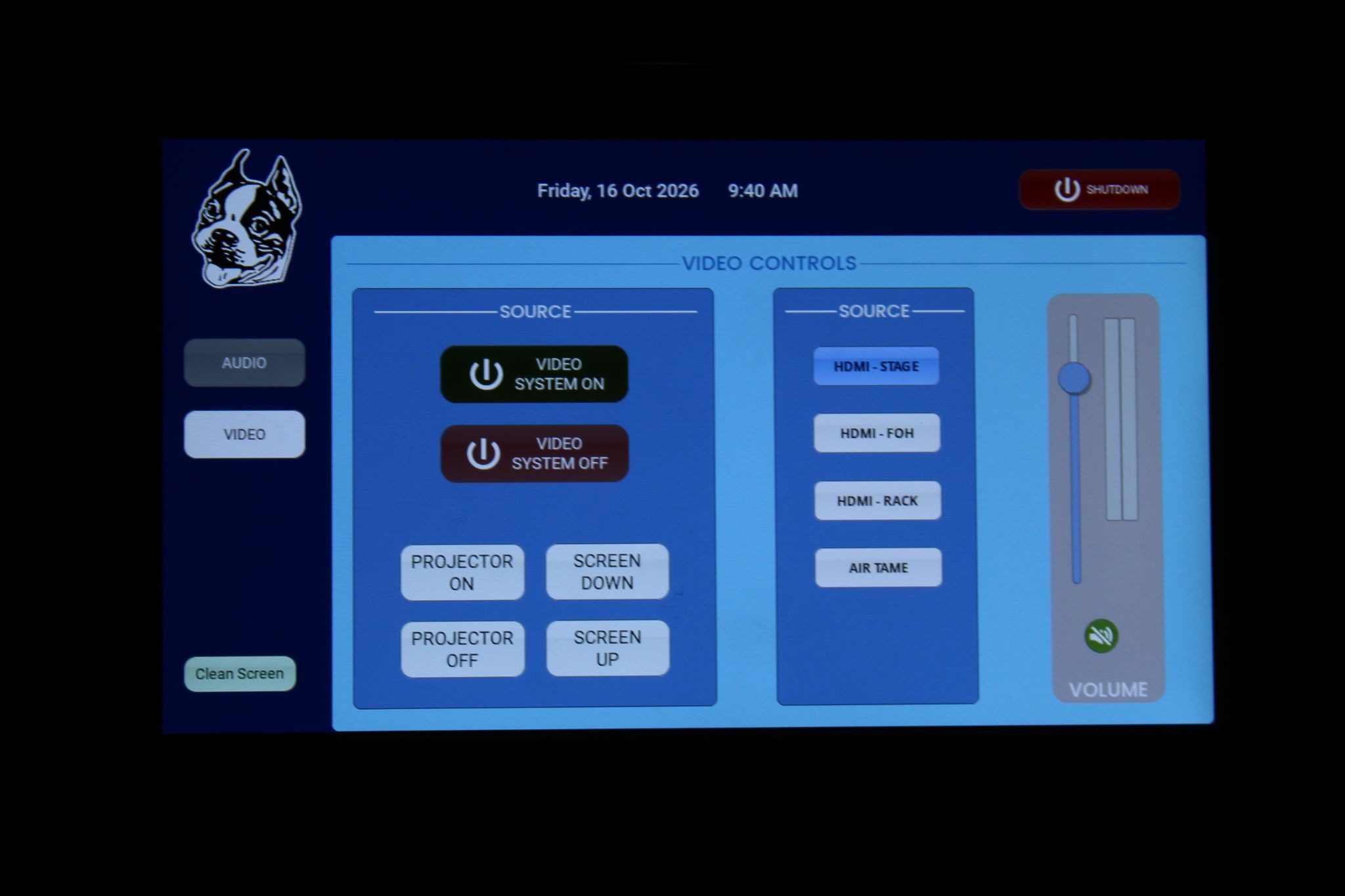

Ensure “HDMI STAGE” is selected as the source, and that volume is unmuted (the mute button will be green if unmuted and red if muted).

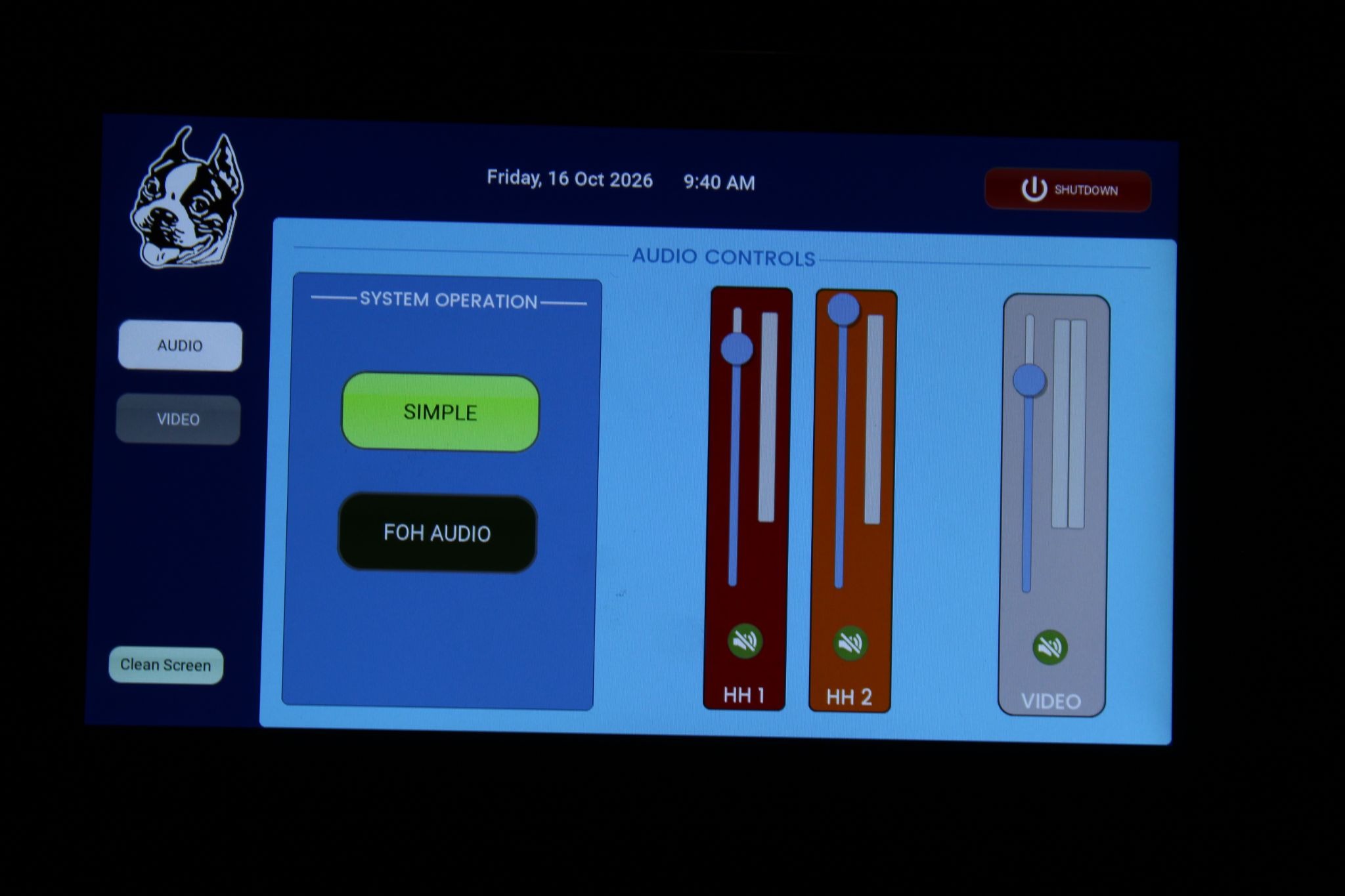

Navigate to the “Audio” section on the display and ensure you are on Simple audio mode
Once everything is powered on and set up, the microphones will auto connect, just make sure they are toggled on (there is a physical switch on the microphones)

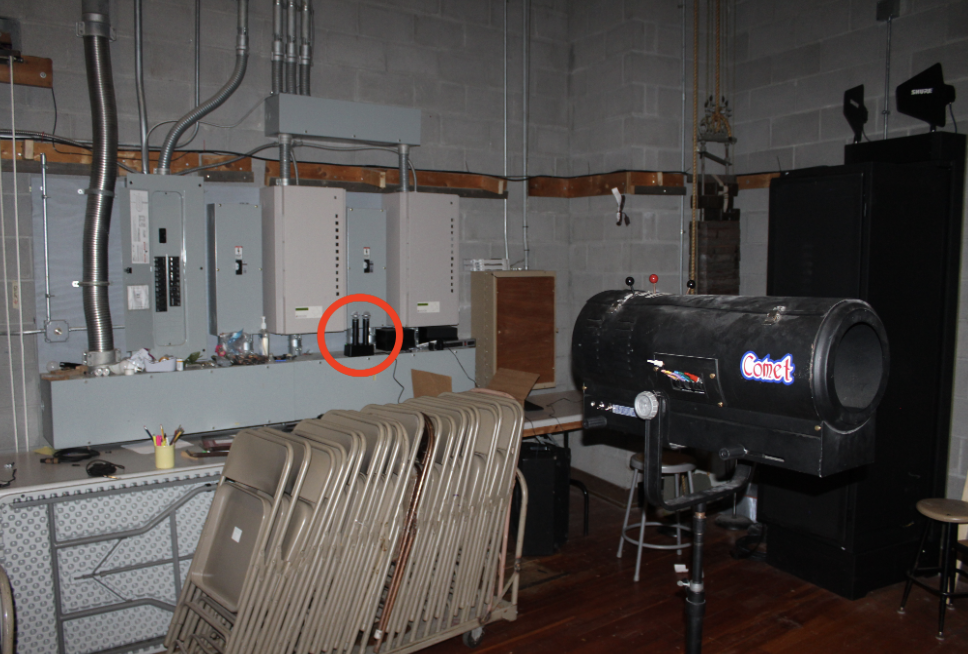

The microphones live here:

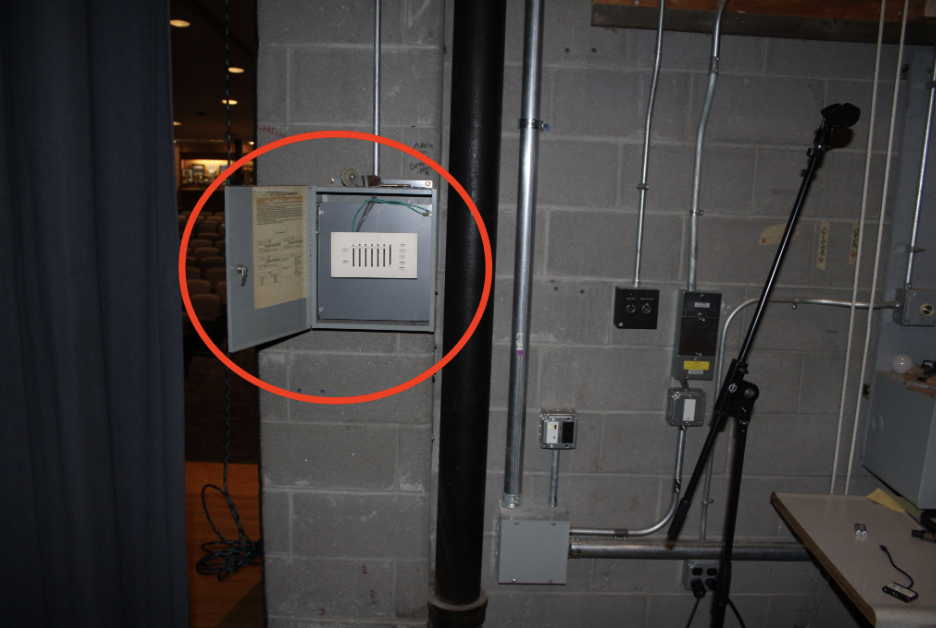

If lighting isn’t configured correctly for the stage that can be controlled with this panel (more detailed instructions for lighting here):
When done presenting, switch the microphones off and put them back on their charging station; and power down the A/V cabinet with the “SHUTDOWN” button in the corner of the display (it will power down as slowly as it turned on)
